20.12.14, 09:06:25
blacky21
geändert von: joehau - 14.02.15, 02:23:00

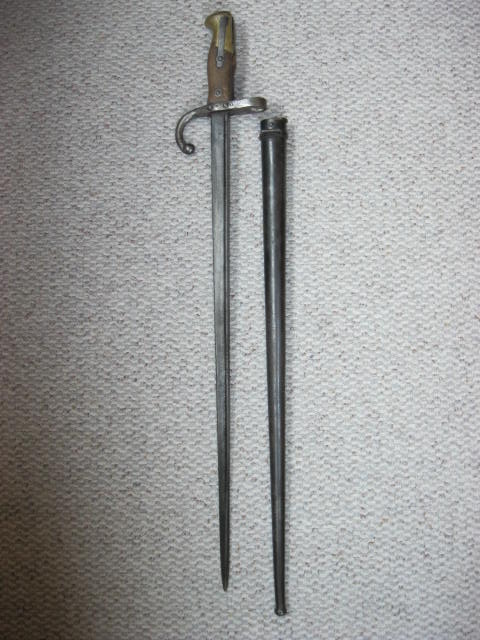

Hier mal ein griech SG 74/03 aus der Steyrfertigung. Es wurde vom griech. IV AK im Raum Görlitz

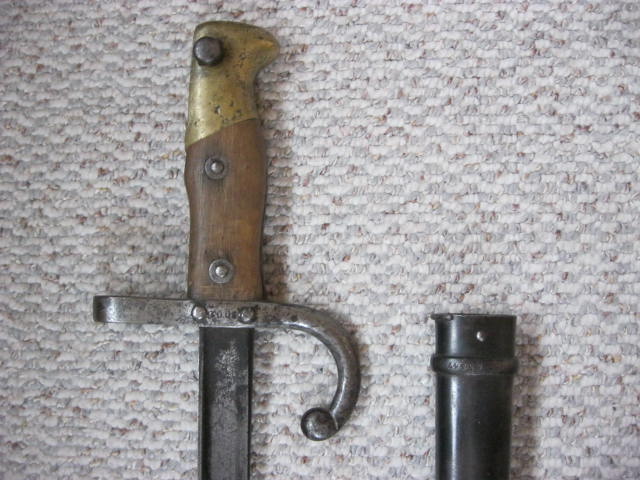

im 1.WK zurückgelassen. Klingeninschrift" Waffenfabrik Steyr 1881". Der Laufring wurde durch ein
Einsatzstück verkleinert.
14.02.15, 02:39:16
joehau
geändert von: joehau - 19.09.18, 16:21:35
Modell:
M1874/03 ( modifiziertes M1874 )
Gesamtlänge: 639 mm
Klingenlänge: 520 mm
Klingenbreite: 20,5 mm
Laufring Ø : 14,5 mm
Länge Scheide: 532 mm
Hersteller: OEWG - Österreichische Waffenfabriks-Gesellschaft, Steyr
Gewehr: Mannlicher-Schönauer Gewehr M1903, Kal.: 6,5 × 54 mm
Beim hier gezeigten Stück ist der Griffkopf durch Hammerschläge oben
deformiert. Dieses ist nicht Teil der Aptierung !
Die letzten 3 Bilder zeigen den Vergleich zwischen einem unveränderten
M1874
und dem aptierten M1874/03.
08.08.15, 08:14:48
Trajan
geändert von: joehau - 08.08.15, 19:30:55
The bayonet in post no.1 is a Greek Y1878 that was altered to fit the Mannlicher Schonauer Y1903/14 rifle,
not the Mannlicher Schonauer Y1903 rifle, which came with a short knife bayonet.
08.08.15, 08:26:37
Trajan
geändert von: joehau - 08.08.15, 19:54:08
Modell: M1874/03 ( modifiziertes M1874 )...
This is a very strange modification and might possibly be a Turkish one. The regulation
way that the Greeks modified their Y1878 (NOT 1874!) bayonets to fit the M-S 1903 and
1903/1914 rifles was to rebuild the muzzle ring as is shown here:
http://1914-1918.invisionzone.com/forums/index.php?showtopic=176148&hl=greek post 12.
(Forgive me writing in English - I can read German but have forgotten how to write it properly...)
08.08.15, 19:37:28
joehau
geändert von: joehau - 10.08.15, 02:31:11
The bayonet in post no.1 is a Greek Y1878 ...

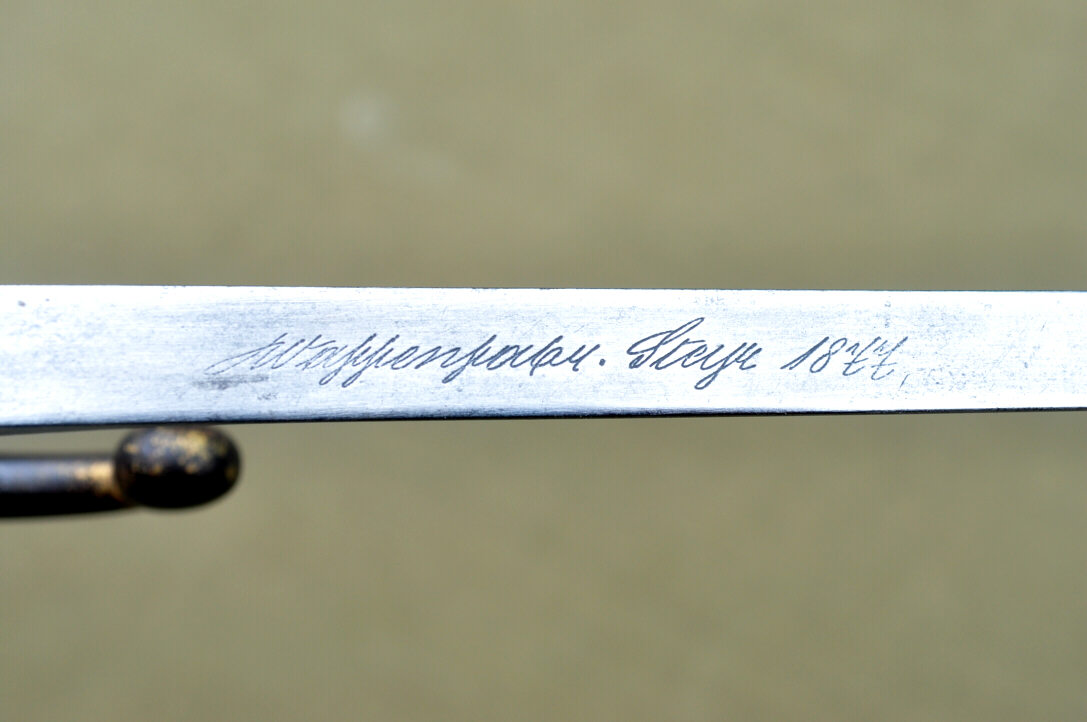

If that is the case, I wonder why the inscription on this blade's spine reads 'Waffenfabr. Steyr 1877'

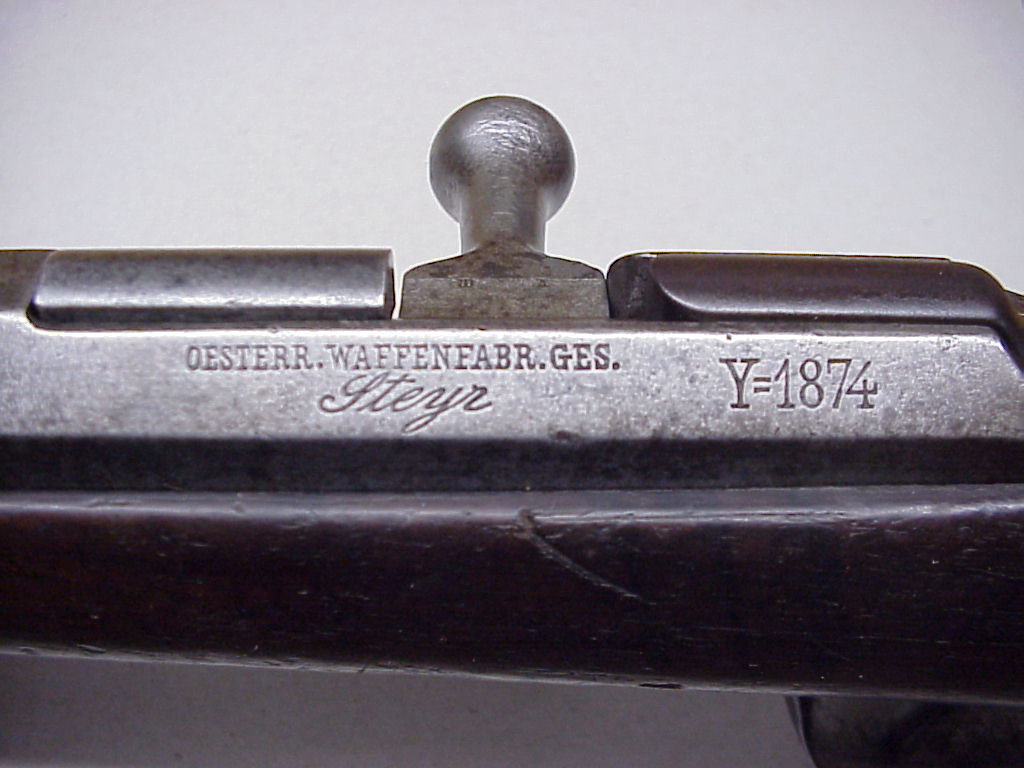

and the inscription on the Steyer 'Gras' rifle reads
Y1874.
08.08.15, 19:53:19
joehau
geändert von: joehau - 08.08.15, 20:28:53
This is a very strange modification and might possibly be a Turkish one.
It's a strange modification indeed ! The usual way to modify the crossbar is shown in post#1 above.
So I can not exclude a Turkish modification of a Greek bayonet since the Turks modified almost
everything they could get hold of, one way or another.
